Filter Media
Washable & disposable air filter media
- A range of air filter medias that may be washed and reused or removed and replaced.

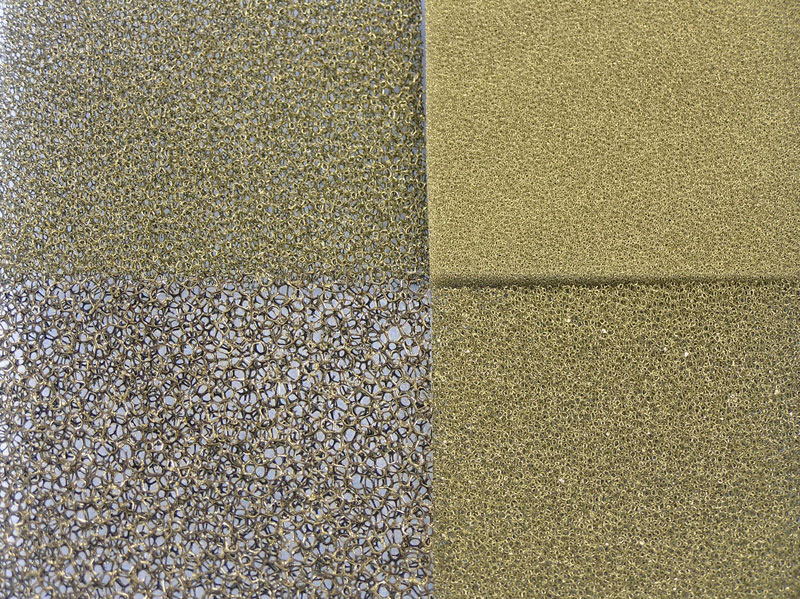

- Reticulated filter foam is available in sheet form or cut to specific pad sizes.
- Polyester medias are available in roll form or cut to specific pad sizes.

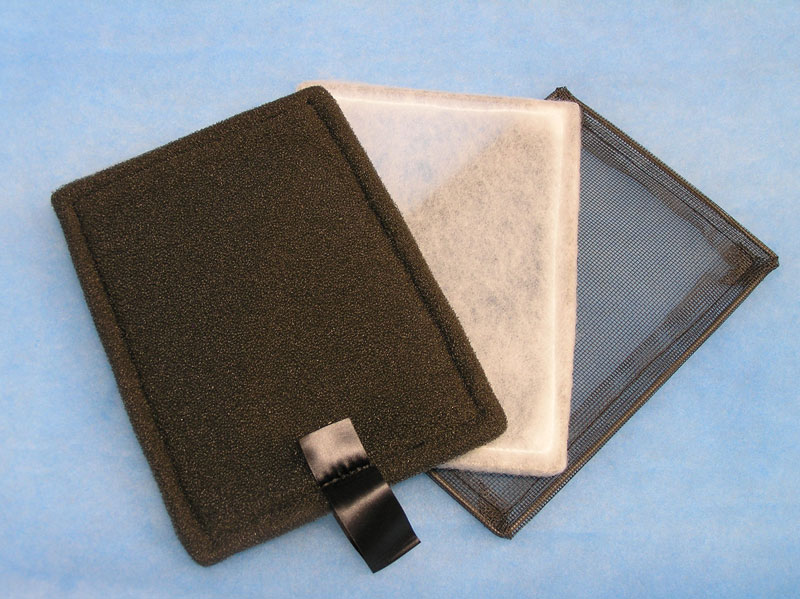

- These medias are usually fitted into a pad holding frame which supports the media in the airstream.
Reticulated Foam - PDF downloads
| Product | Rating | Dimensions | Application | |
|---|---|---|---|---|
| RETICULATED FILTER MEDIA | 10 - 80ppi |
1.22 x 2m |
Fully washable air filter media ideal for damp conditions |
Synthetic Filter Fleeces available in roll form or cut to specific pad sizes
| Product | Efficiency | Thickness | Roll Size | |
|---|---|---|---|---|
| FILTER MEDIA GRADE DSR1/250 | G2 | 8mm | 2m x 50m | |
| FILTER MEDIA GRADE DSR2/220 | G3 | 12mm | 2m x 20m | |
| FILTER MEDIA DSR4/220 | G4 | 25mm | 2m x 20m | |
| FILTER MEDIA DSR5/220 | G4 | 50mm | 2m x 20m | |
| FILTER MEDIA DSR6/220 | G4 | 25mm | 2m x 20m | |
| FILTER MEDIA DSR12/220 | G4 | 25mm | 2m x 20m | |
| FILTER MEDIA DSR9/220 | G5 | 20mm | 2m x 20m | |
| FILTER MEDIA DSR10/220 | G5 | 25mm | 2m x 20m |
We are your one stop shop for all your process filtration, separation & hydrocarbon products.
Call today for advice and a quotation - 01422 377367
